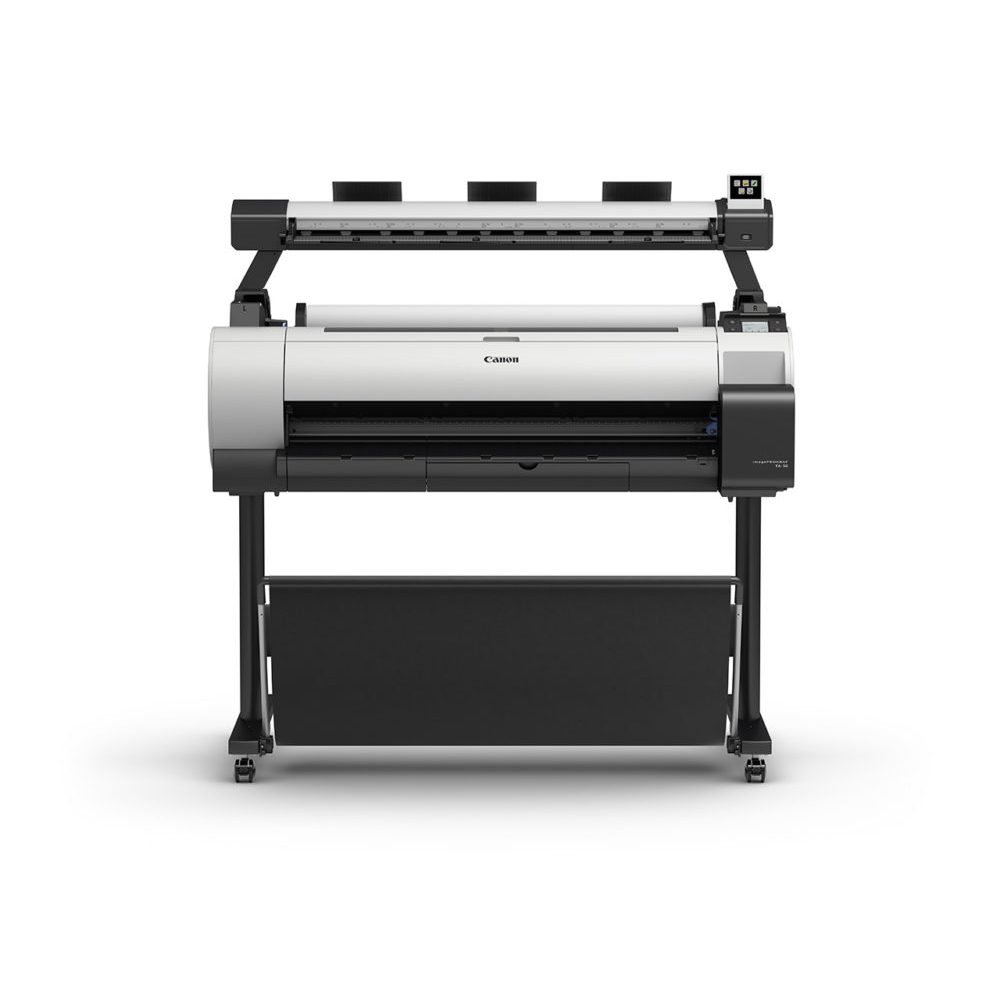

imagePROGRAF TA-30 MFP L36ei
The Canon imagePROGRAF TA-30 MFP L36ei large format imaging system is an affordable scan-to-copy/file system for low volume and entry-level users with a minimal learning curve when it comes to new equipment. This is the ideal system for those who do not require the advanced functionality of the MFP T36 imaging system. The new Lei Series complements the current MFP T36 product line by providing a product that offers basic scan-to-copy capabilities at an affordable price.
A versatile system built for the way you work, the imagePROGRAF TA-30 MFP L36ei includes:
• L36ei Scanner
• TA-30 36-inch Pigment Ink Printer
The TA system comes available with user-friendly software solutions ready to meet your printing needs. Creating custom signage has never been easier with Canon’s included PosterArtist Lite poster creation software. This easy-to-use software will have you creating large format prints quickly in just four easy to follow steps.
- Key Features
- All Features
- Ink & Media
- Drivers & Support
Number of Inks
Media Roll Feed
The L36ei scanner incorporates a SingleSensor assembly technology, which helps provide consistent and better colour accuracy with more detail in the shadows and highlights than a staggered CIS array scanner1.
• Touch Screen Operation Panel
• 600 dpi optical resolution
• Image scanning of up to 36” wide, fits documents 38” wide
• Scanning speed of up to 3 inches per second monochrome, 1 inch per second colour
• 3 Quality Modes: Draft, Standard and Best
• Scan documents up to 0.5 mm thick
• Face up / Rear exit
• Straight paper path
The L36ei scanner contains a single component image sensor that is the full width of the scanner and has long life LED Bi-directional illumination. Full width image capture, as opposed to time delayed scanning of separate sections, means less risk of misalignment of scan data. LEDs require virtually no warm-up time and provide a wide and consistent colour gamut, with low power consumption and less potential for shadowing at creases or folds.
TA-30 Large Format Printer
Bring your printing in-house with the imagePROGRAF TA-30 large format printer. With uncompromising quality from the #3 patent holder in the U.S., this multipurpose 36" desktop printer, offers a cost-efficient, easy-to-use solution built to stimulate workflow and productivity for small businesses and first-time large format print users. The TA Series ships with free poster/marketing creation software and a Print Plug-in for Microsoft Office – the software tools you need to bring your business to the next level.
Print More Out of the Box
The TA Series ship with 164% more ink than the comparable HP and 157% more ink than the comparable Epson.* 330ml ink in total – over a $250 value!
Low Cost of Operation
Economy Print Mode (Fast (Q5)) allows for up to 40% less ink to be used during printing than standard mode (Q3) – helping to lower your operation costs.
Print 113 24 x 36 posters per hour2
Print Outdoor Posters
Unlike the HP DesignJet printers*, the TA Series use pigment ink to produce weather-resistant posters.
The Perfect Print
With Canon's advanced Air Feeding System, paper is kept flat during printing – helping to make consistent prints every time!
The TA Series large-format printers come equipped with several security features3 designed to help prevent leaks of confidential information:
802.1x: Helps ensure information is secure when passing over a network by providing authentication to devices attempting to connect to the network.
SSL/TLS: Allows sensitive information being sent via an internet connection to be sent securely for data being passed between two systems.
IPSec: Authenticates and encrypts data passed over IP networks.
Minimize Disruption in the Workplace
The TA is the quietest printer in this market.*
More Paper. More Printing
The TA has the ability to utilize long rolls (5.9" in diameter) and a wide variety of media.
The TA-30's small footprint is perfect for any office.
Print mobile from almost anywhere in the office or jobsite.4
The Sub-Ink Tank System lets you change empty cartridges while the printer continues to print allowing you to use virtually all of the available ink in the tank before having to replace it.
Virtually No Printing Limits
Print borderless on all media sizes – the competition can't do this!*
You don't need to be a graphic designer to create your own posters. Canon's PosterArtist Lite software gives you the ability to quickly and easily create professional large format prints that can be used in applications such as office presentations, posters, banners, retail signage, and much, much more.
Free Layout Plus
Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
Accounting Manager software serves as a powerful feature that can help users accurately manage their printing costs.
Canon Print Inkjet/SELPHY
This is a mobile printing app that enables printing from both iOS and Android devices. You can print large format posters or PDFs straight from your fingertips.
Direct Print & Share
Sharing ideas has never been easier with Canon’s Direct Print & Share software.5 Direct Print & Share is a cloud portal and batch printing solution that helps you to expand your printing workflow. This software allows you to upload documents to your cloud account using any webDAV compliant cloud service, and print the uploaded documents from almost anywhere. The Shortcut Print feature allows you to drag and drop into a folder and the files will start printing automatically.
Media Configuration Tool
Manage, update and arrange media information in the operation panel and printer driver.
Device Management Console
This software allows users to continually monitor information such as the printer status and colours being used to print.
AutoCad® Optimized Printer Driver
AutoCAD software products help enable optimal printing productivity and reliability from the AutoCAD software.
- Scanner Type
- Contact Image Sensor (CIS) technology
- Scan Accuracy
- +/- 0.20%
- 3 ips monochrome, 1 ips colour (Copy, Standard Mode)
- Optical Resolutions
- 600 dpi
- Max Resolutions
- 600 dpi
- Max. Document Size
- Width: 38 inch document width (36 inch image width)
- 109 inch
- Standard Interface (Scan to USB)
- USB 2.0
- Standard Interface (Scan to Network)
- Gigabit ethernet
- Printer Type
- 5-Colour 36-inch Printer
- Number of Nozzles
- Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK, MBK: 2,560 nozzles each
- Nozzle Pitch
- 1200 dpi
Non-firing nozzle detection and compensation
- Print Resolution (Up to)
- 2400×1200dpi (Max)
- OS Compatibility
- Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh® OS X v10.10.5-v10.12x
- Standard Interfaces
- USB 2.0 High-Speed
Wireless LAN (IEEE 802.11 b/g/n)
- Ink Droplet Size
- Minimum 5 picoliter
- Ink Capacity
- 55 ml per colour
- Ink Type
- Pigment Ink
- Colour Set
- Pigment: Matte Black, Black, Cyan, Magenta, Yellow
- Buffer Ram
- 2 GB (Physical)
- Media Width
- Cut Sheet: 8" - 17"
Roll Feed - 8" - 36"
- Media Thickness
- 0.07 - 0.8mm
- Maximum Media Roll Diameter
- 59" (150mm)
- Borderless Printing Width (Roll Media Only)
- 8" - 36"
- Paper Feed Method
- Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top-loading, Front Output
- SGRaster, HPGL/2, HP-RTL, JPEG
- Noise Level Approx.
- Operation: 42 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 5.8 Bels
- Physical Dimensions
- 50.7" x 34.3" x 41.7" (H x W x D)
- Approx. 101 lbs (roll holder included, no inks, no print heads)
- Power Source
- AC 100-240V (50-60Hz)
- Power Consumption
- Maximum: 52W or less
Standby: 3.6W or less
Power Off: 0.3W or less (Compliant with Executive Order)
- Operating Environment
- Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
- User-replaceable items
- Print Head (PF-06)
Maintenance Cartridge (MC-31)
Ink Tanks (PFI-030)
Cutter Blade (CT-08)
- Software Included
- TA Unified Printer Driver, Accounting Manager, Apple AirPrint, Canon Print Service, Device Management Console, Direct Print & Share, Free Layout Tool, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, Optimized Driver for AutoCAD, Canon PRINT Inkjet Selphy, Easy Photo Print Editor
Canon Genuine Inks
Canon genuine inks are developed to optimize the performance of the imagePROGRAF lineup. Expertly engineered, they provide top performance, reliability, and optimum output. Lucia EX and Lucia pigment inks were designed to produce images with accurate colour reproduction, smooth gradations, and sharp details. Reactive inks have been formulated to print highly accurate and detailed AEC/CAD/GIS documents, enabling colour output with clear fine lines and details, and increased print durability.
Large Format Media
Canon media is designed to showcase the precision, quality, and consistency of the imagePROGRAF large format printer lineup. Whether it’s high-quality gallery-ready artwork or everyday printing, Canon offers over 50 types of media to choose from to fit your quality, productivity, and budget requirements.
Drivers & Downloads
Find and download the latest drivers and software for your imagePROGRAF large format printer.Learn More
Have a question about an imagePROGRAF large format printer? Quick and accurate answers are here at your fingertips. Our team of service and support professionals helps you get the most out of your Canon products by offering support whenever you need it.Contact Us
