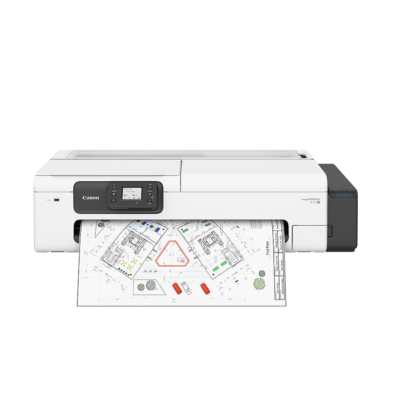

imagePROGRAF TC-20M

All the formats and features you’ll need in one printer!
The Canon imagePROGRAF TC-20M multifunction printer is designed to provide the versatility to help create high-quality CAD drawings, posters and large prints. Compact and easy to operate, this large format (24” wide output) printer will allow you to experience greater productivity and boost your workflow, even in small workplaces, with the added ability to print from Letter/A4 to A1 sizes.

From: $1,495

Key Features
All Features
Specifications
Ink & Media
Drivers & Support

Number of Inks

4
Cartridge Sizes

70 ml
Media Roll Feed

Single Roll
Media Width

24"
Functions

Multi-Function
Basket Type

Desktop Basket
Ink Type

Pigment Ink
Printer Type

Desktop
Wi-Fi

Yes

24” Large Format Multifunction Printer

Enlarge or repeat copy directly from a letter / A4 flatbed scanner. No computer needed.

Automatic Sheet Feeder

Automatically load up to 100 sheets of letter size paper or up to 50 sheets of 11” x 17” paper for greater print flexibility.

Media Handling

From roll-fed to cut-sheet paper, you get the versatility to print 24”-wide output as well as letter, 11” x 17”, and more.

Print More

The imagePROGRAF TC-20M ships with 280 ml of ink – 70 ml per ink bottle – the most in its class!

Easy to Fill

Ink bottles are keyed so they only fit and fill the intended colour ink tank. The design helps to create a spill-free process that makes refilling a breeze.

2.7” Touch Screen LCD Display

Get the job done with an easy to use 2.7” touch screen LCD.

USB Flash Drive Port

Easily print in large format by just inserting a USB Flash Drive.

Cloud Printing & Scanning

Easily print to or scan from the cloud directly from the printer.

Printer Type: 4 Colour 24"
Print Technology: FINE: Full-Photolithography Inkjet Nozzle Engineering
Head Configuration: 4-Colour Integrated Type x 1 print head
Number of Nozzles: Total: 4352 nozzles
(BK 1,280 nozzles, C/M/Y 1,024 nozzles each)
Nozzle Pitch: 1,200 dpi
Print Resolution (Up to): 2,400 x 1,200 dpi (Max)
OS Compatibility: Computer Operating Systems:
32-bit: Windows® 7/8.1/10
64-bit: Windows 7/8.1/10/11, Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac: mac0S v10.14.6 - macOS v12.x
Print Software: imagePROGRAF Printer Driver for TC-20M Windows/Mac
Apple Air Print
Mopria
Canon PRINT Inkjet/SELPHY
PIXMA Cloud Link
PosterArtist Online
Free Layout Plus
Direct Print Plus
Media Configuration Tool
Quick Utility Toolbox
WiFi Connection Assistant
Printer Update Utility2
Scan Software: imagePROGRAF Printer Driver for TC-20M Windows/Mac
Scan Utility Lite
PIXUS/PIXMA Cloud Link
Printer Update Utility2
Printer Language: SGRaster
Standard Interfaces: Hi-Speed USB
Wi-Fi® IEEE802.11n/IEEE802.11g/IEEE802.11b
Wired LAN IEEE802.3u (100BASE-TX)/IEEE802.3(10BASE-T)
Ink Capacity: 70 ml per colour
Ink Types: Pigment Ink
Colour Set: Pigment: Black, Cyan, Magenta, Yellow
Scanner Type: Flatbed
Scanning Method: CIS
Maximum Scan Resolution: Up to 2400 x 1200 dpi
Maximum Scan Document Size: A4/LTR
Media Handling: Roll: One Roll, Top-loading, Front Output
Cut Sheet: Automatic Sheet Feeder, Top-loading, Front Output
Media Width: Roll Feed: 12"- 24” (297 mm - 610 mm)
Cut Sheet: 8.3" - 12" (210 mm - 297 mm)
Maximum Printable Length: Roll Feed: 13.1’ (4 m)1
Cut Sheet: 17" (432 mm)1
Media Thickness: 0.08 mm - 0.28 mm
Media Core Size: 2” Core
Maximum Media Roll Diameter: 4.3” (110 mm)
Printable Margins: Roll Feed: All Sides - 0.19” (5 mm)
Acoustic Noise: Operation Approx. 41.5dB
35dB or Less Acoustic Power Approx. 6.0 Bels
Power Supply: AC 100–240 V (50-60 Hz)
Power Consumption: Maximum 26W or Less
Standby: 0.3W or Less Power Off
Operating Environment: Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Environmental Certifications: ENERGY STAR® (Worldwide), EPEAT GOLD
Physical Dimensions: 38.1 x 21.4 x 16
Weight: 72.8lbs
User-replaceable items: Print Head (PF-08)
Maintenance Cartridge (MC-32)
Ink Tanks (PFI-050)

Canon Genuine Inks

Canon genuine inks are developed to optimize the performance of the imagePROGRAF lineup. Expertly engineered, they provide top performance, reliability, and optimum output. Lucia EX and Lucia pigment inks were designed to produce images with accurate colour reproduction, smooth gradations, and sharp details. Reactive inks have been formulated to print highly accurate and detailed AEC/CAD/GIS documents, enabling colour output with clear fine lines and details, and increased print durability.
Large Format Media

Canon media is designed to showcase the precision, quality, and consistency of the imagePROGRAF large format printer lineup. Whether it’s high-quality gallery-ready artwork or everyday printing, Canon offers over 50 types of media to choose from to fit your quality, productivity, and budget requirements.
